GK 3899 Through hole slip ring

Model: GK3899-2/20A 2/s
Instantaneous impulse current: 20A
Maximum number of revolutions: 200 revolutions
Operating temperature: -20℃~80℃
Insulation resistance: ≥500Ω/500VDC

Consult now Download

Specifications

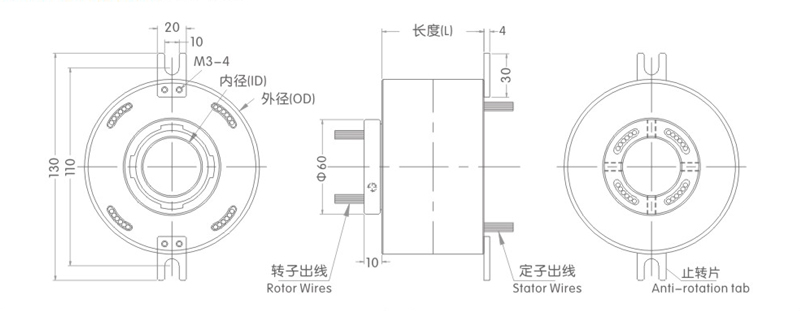

Dimensions

the inside diameter of	outer diameter	Number of rings	Length L (mm)	Current (A)
Φ38	Φ99	2	32	(0-20A/ring)
		3	36
		4	40
		5	44
		6	48
		7	52
		8	56
		9	60
		10	64
		11	68
		12	72
		13	76
		14	80
		15	86
		16	90
		17	94
		18	98
		19	102
		20	106

Technical indicators

Universal ring number	1 ring-30 rings (30 rings or more need to be customized)	contact	precious metal
loop voltage	0≈500VDC/VAC	wire name	Teflon high temperature wire
loop current	Signal/5A, current/20A (customized above 20A)	wire length	300mm (can be customized longer)
Insulation resistance	≥500Ω/500VDC	ambient temperature	-20℃≈80℃ (customizable high temperature)
Dynamic resistance fluctuation value	≤10mΩ	environment humidity	10%≈65%RH
Rotating speed	200 revolutions/RPM (higher revolutions can be customized)	Protection class	IP51
Dielectric strength	500V/50Hz.AC.60s	Shockproof level	MIL-STD-810E
