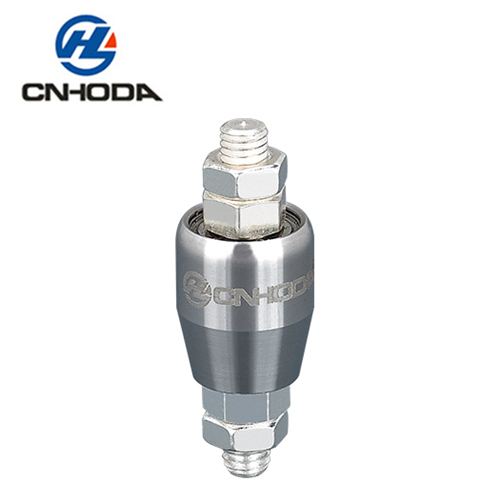

Mercury slip ring
Mercury slip ring
The mercury slip ring is also called the mercury conductive ring or the mercury conductive slip ring. In short, it is a conductive rotary joint with mercury as the fluid medium. It is an industrial part. The biggest difference from the traditional ca
Product introduction

         Mercury slip ring is a special kind of product. Why is it called mercury slip ring? Because the mercury slip ring is a conductive rotating structure with mercury as the main fluid medium, it has a mercury slip ring and another name is the conductive selection joint. I believe that most customers should be able to use this product in various It can be seen in the parts of industrial equipment, and because the mercury slip ring uses mercury as the main medium, and the mercury can be kept in a liquid state at room temperature, the mercury can not only be used as a medium, but also can conduct electricity. The effect makes the resistance of the mercury slip ring smaller when it is used, because this product has the above two special characteristics. The medium can stand out in the slip ring industry, but because the main medium of this product is mercury and at the same time At the same time, it also has a highly toxic that may threaten the safety of operators once there is a mistake in use, and the price of mercury is also very expensive. Under normal circumstances, it is only common in special equipment or high-tech mechanical equipment.


Specifications

1. Unipolar rotary connector

Specification:

Model

Number of connected circuits

Maximum current for long-term use

Instantaneous current (30S)

Rotating speed

Operating temperature

Rotational torque

Contact resistance

A110-H

  1

10

15

500

60/-20

≤20

<1mΩ

A110S-H

1

10

15

500

60/-20

≤20

<1mΩ

A110T-H

1

10

15

500

60/-20

≤20

<1mΩ

A110TS-H

1

10

15

500

60/-20

≤20

<1mΩ

A120-H

1

20

25

500

60/-20

≤20

<1mΩ

A120S-H

1

20

25

500

60/-20

≤20

<1mΩ

A150-H

1

50

80

500

60/-20

≤20

<1mΩ

A150S-H

1

50

80

500

60/-20

≤20

<1mΩ

A1120-H

1

100

120

300

60/-20

≤150

<1mΩ

A1120S-H

1

100

120

300

60/-20

≤150

<1mΩ

A1250S-H

1

200

250

300

60/-20

≤200

<1mΩ

A1250PS-H

1

200

250

300

60/-20

≤200

<1mΩ

A1500S-H

1

400

500

120

60/-20

≤400

<1mΩ

A1500PS-H

1

400

500

120

60/-20

≤400

<1mΩ

A1650S-H

1

500

650

80

60/-20

≤500

<1mΩ

A1650PS-H

1

500

650

80

60/-20

≤500

<1mΩ

A1900S-H

1

750

900

80

60/-20

≤700

<1mΩ

2. Multi-stage mercury slip ring

Specification:

Model

Number of connected circuits

Maximum current for long-term use

Instantaneous current (30S)

Rotating speed

Operating temperature

Rotational torque

Contact resistance

A205-H

 2

5

10

400

60/-20

≤20

<1mΩ

A230-H

2

30

50

400

60/-20

≤200

<1mΩ

A305-H

3

5

10

400

60/-20

≤20

<1mΩ

A330-H

3

30

50

400

60/-20

≤300

<1mΩ

A430-H

4

2P-30/2S-5

50

400

60/-20

≤300

<1mΩ

A630-H

6

4P-30/2S-5

50

300

60/-20

≤400

<1mΩ

A830-H

8

6P-30/2S-5

50

50

60/-20

≤500

<1mΩ

A1030-H

10

8P-30/2S-5

50

50

60/-20

≤500

<1mΩ


Advantage

      With the continuous development of the industrial industry, the degree of sophistication of industrial machinery is also increasing, and it has gradually evolved from the old-fashioned rough and rudimentary equipment to the sophisticated instruments that people see today, and some are more advanced. The industry has adopted relatively high-end industrial equipment and automated robots for production, and the appearance of the mercury slip ring is for these precision machinery. Although most of the slip rings compete with this product, the mercury slip ring The ring takes advantage of its special medium and compact structure to compare most of the slip nets, but the mercury slip ring is not only chosen by many industries because of these advantages, but also because it has In order to have a longer service life than other slip ring equipment, because the medium used inside the mercury slip ring is mercury characteristics, the equipment runs almost without wear, so it will have a longer service life than most equipment. , The slip rings generally used in industrial machinery and equipment need frequent rotation during operation. If the slip ring with a short service life is used for a period of time, it will fail. The mercury slip ring has several advantages. load of these industrial equipment.

      It is because the mercury slip ring has the above advantages that it can get the choice of most industries when it competes with other industries. Although some customers still struggle with its price before choosing, the mercury slip ring product relies on Features such as maintenance-free, no noise, high speed and no noise, and high prices are also chosen by so many customers.


Specifications

           Under normal circumstances, the mercury slip ring hardly needs maintenance. It is only required under special circumstances. The general method of maintaining this product is also very simple. First, cut off all the current and signals passing through the mercury slip ring, so as to avoid Affect the operation of the mechanical equipment, and then remove the screws on the support plate to allow the stator frame to be selected, then take out the shell of the mercury slip ring in the direction specified by the manufacturer, and finally take out the mechanical energy of the mercury slip ring. After some cleaning, rotate the stator frame to clean the ring as a whole. Finally, install the mercury slip ring according to the method specified by the manufacturer and test it several times to confirm that there is no problem, and then it can be put into official use. in the middle.

           Remind customers who want to maintain mercury slip rings that the maintenance personnel you are looking for have professional knowledge, not general staff, so that the maintenance work can be successfully completed, and the cleaning agent used in cleaning the ring is the best. It is good to choose the one recommended by the mercury slip ring manufacturer instead of arbitrarily choosing. If you want to choose other different cleaning agents, you should conduct some tests before maintenance to confirm that this cleaning agent will not affect the ring and mechanical equipment. use.


Installation points

       Some first-time buyers of mercury slip rings will have some problems after they get this product because they haven't read the manufacturer's relevant installation guide carefully, which will lead to the appearance of a good cloak or limit the performance and life of the device. Here are some of the most common problems that occur:

(1) Use environment

       When using the mercury slip ring, the temperature should not exceed 60 degrees so as not to cause great damage to the slip ring and industrial machinery, because most customers only consider the operation of this product when purchasing mercury slip rings. The dissipated temperature and ignoring the environment will also increase the temperature of industrial machinery during operation, which will eventually lead to the occurrence of temperature exceeding the standard once the mercury slip ring has been running for a long time.

(2) Installation direction

      When installing the mercury slip ring, the wrong direction causes the mechanical equipment to fail to operate normally. This is the most common problem when installing the mercury slip ring for the first time. Generally, the way to install the slip ring is to install it vertically. The customer can't tell whether the silver slip ring is on the bottom or on the other side. If you are careful, you will find that there will be a sign on the equipment. You only need to choose the installation direction according to this instruction to install it correctly.

(3) Fixed

      When installing the mercury slip ring, the axis of this product must not be offset. Once offset, the equipment will fail during operation, so whether the method of fixing the axis is correct also determines the future operation of this product. , Most of the fixing methods will have the phenomenon of axis offset, so compared with customers, the three-point locking method can be used to fix the axis to the greatest extent to avoid offset.

(4) Vibration

      The mercury slip ring should not be subjected to severe vibration when installing the mercury slip ring or before installation or in daily use. Once the vibration is large, the mercury slip ring inside the industrial machinery will be affected and the equipment will be damaged. Reduced service life.

      The above are the common problems that need to be paid attention to when installing the mercury slip ring product. It is recommended that every customer who installs for the first time should carefully read the installation guide given by the manufacturer before installing a product. It is more convenient for you to install and can also prevent these problems from happening. If you encounter any unsolvable problems when installing the mercury slip ring, you can contact the after-sales service, which can help you effectively and can also assist you. Installation and commissioning of mercury slip rings.


Purchase notice

    A suitable mercury slip ring can keep the mechanical equipment installed with this mercury slip ring in good condition at any time, which can greatly improve the stability and service life of your equipment, while a suitable mercury slip ring is not. It is said that a random one is obtained after careful screening, but such screening is rather cumbersome for new customers, so the following will explain the basic knowledge of these purchases for these customers.

1. Manufacturers

      When you find a trustworthy mercury slip ring manufacturer before purchasing a mercury slip ring, it can make the purchase of mud more convenient, and the product quality and performance are also better guaranteed, and a good manufacturer is important. It is the service with excellent service and this service can help you to buy mercury slip rings so that you don't need to spend so much energy on choosing mercury slip rings.

2. Price

     The price of the mercury slip ring is based on the market. Before you buy a mercury slip ring, you need to investigate the price trend of this product in the market, and then buy it according to the market price. Avoiding most of the inferior manufacturers can also prevent the purchase of equipment with average performance but higher prices.

3. Use environment

     The environment in which the mercury slip ring is used must meet the requirements of your actual environment. If there is any inconsistency with the equipment, you must explain it to the manufacturer. Environmental factors have a huge impact on the performance and service life of the mercury slip ring. For example, when the temperature is too high, it will not only affect the industrial machinery, but also cause great damage to the life and performance of the mercury slip ring.


Precautions

(1) When you use the mercury slip ring, you should always observe the temperature change of the equipment in operation. The operating temperature of the mercury slip ring is generally kept below 60 degrees, which may not affect the equipment too much, but With the gradual increase of the temperature, this influence will gradually increase. If it exceeds 60 degrees, it will affect the life and performance. Generally, the operating temperature of mechanical equipment is composed of ambient temperature + self-heating.

(2) When the mercury slip ring is in operation, it cannot receive severe vibration, which will reduce the service life of the equipment.

(3) Always pay attention to the fixing of the mercury slip ring, because it is very difficult to fix the mercury slip ring with small volume and high precision. Once there is a problem with the fixing of the mercury slip ring, the mechanical and mercury slip rings will be affected. Therefore, mercury slip ring manufacturers will provide customers with special terminals for this product to avoid this phenomenon. However, some customers still have this phenomenon during installation because they do not watch the installation guide, so remind customers before installation. Try to watch the installation guide. If you encounter any difficulties during installation, you can also contact the after-sales service of the mercury slip ring manufacturer.

(4) The special terminal provided by the mercury slip ring manufacturer cannot be used repeatedly. If the number of times of use is limited, it should be replaced in time because the long-term repeated use will cause the terminal to lose its fixing ability. Once the fixed mercury slip is lost. The ring can cause damage between the two devices when the mechanical device is in operation.

(5) When using the mercury slip ring, you must use the method specified by the manufacturer of the mercury slip ring. The wrong method of use will only make the mechanical equipment and the mercury slip ring unable to properly perform its due performance, and will also cause great wear and tear. increase.


Specifications

1) Horizontal copper plating line, rotary silver plating line

2) Rotating stage lights, computer lights

3) Rotating camera, rotating light box

4) Circular screen tube camera

5) Cable reels

6) Rotate the antenna

7) Semiconductor device

8) Robot Arm

9) Heating roller

10)旋转接头


Quality assurance

In the process of after-sales service and technical support, our company has accumulated many years of experience, and finally formed a complete set of management norms, providing a standardized guarantee for high-quality services, a project from project establishment to implementation, to the final submission to users and There are very strict systems and regulations for system maintenance and product maintenance after submission. In doing so, not only can we ensure that our work can be carried out according to the plan, the most important thing is to ensure that the interests of users are guaranteed, and that the products and services we provide meet the needs of users.

The company has a group of technical support technical forces, to provide more effective maintenance service technical support to the end users who purchase the company.

The company's technical model ensures that users and partners can receive 24/7 technical support.

In the company's multi-level service system, online support is mainly completed by the company's customer support center.

The company always follows the service tenet of customer satisfaction, and wholeheartedly provides first-class technical support and after-sales service for the majority of users.


Special custom

The customer proposes a non-standard plan, we organize relevant technical personnel to carry out the work and implement it, the customer determines the final perfect plan and hands it over to us to produce and debug the equipment, and finally the customer will accept the completed project equipment. Adhere to the customer-oriented corporate development concept, and insist on solving various implementable solutions for customers.
