Economic Development Zone, Yueqing City, Zhejiang ProvinceModel: A1030-H
Number of poles: 10
Instantaneous impulse current: 50
Pressure resistance: 250
Frequency: 200
Maximum speed: 50
Use temperature: 60℃/-20℃
Torque: ≤500
Insulation resistance: <1MΩ

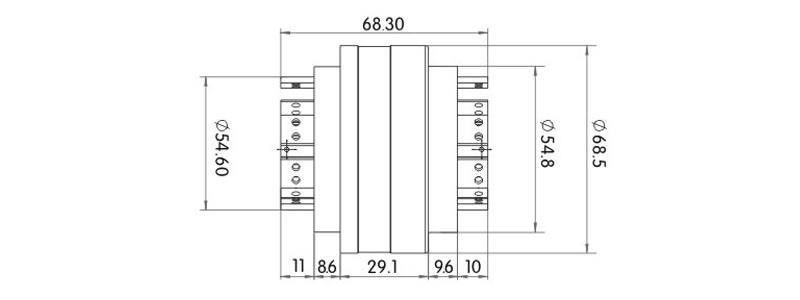

Dimensions (see Figure 1)
Figure 1
Multi-pole slip ring installation method (see Figure 2)
Figure 2
| Parameter | Value |
| Model | A1030-H |
| Number of connected circuits | 10 |
| Maximum current for long-term use | 8P-30/2S-5 |
| /Instantaneous current | 50 |
| Rotating speed | 50 |
| Operating temperature | 60℃/-20℃ |
| Rotational torque | ≤500 |
| contact resistance | ＜1MΩ |
