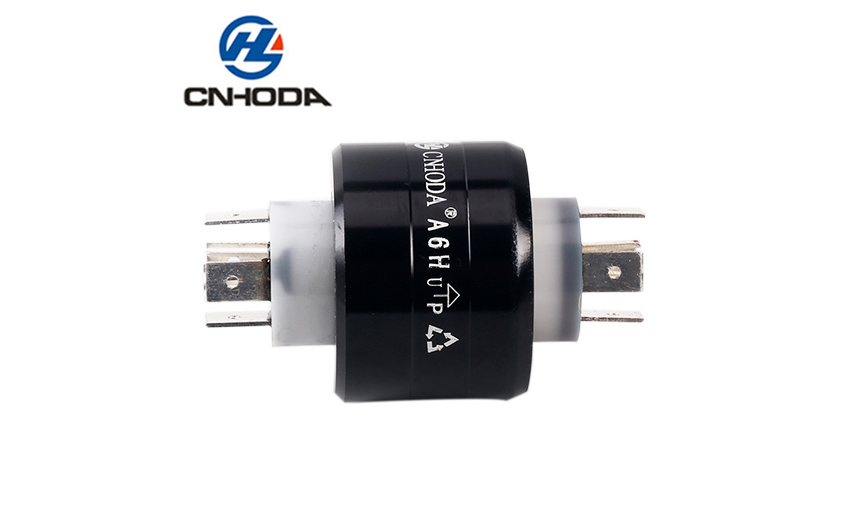

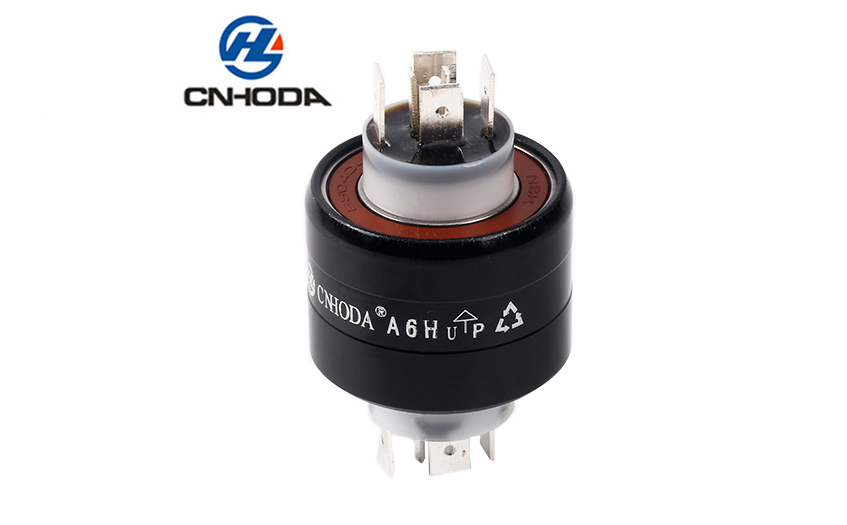

Economic Development Zone, Yueqing City, Zhejiang ProvinceModel: A630-H
Number of poles: 6
Instantaneous impulse current: 50
Pressure resistance: 250
Frequency: 100
Maximum speed: 300
Use temperature: 60℃/-30℃
Torque: 700
Insulation resistance: >25MΩ

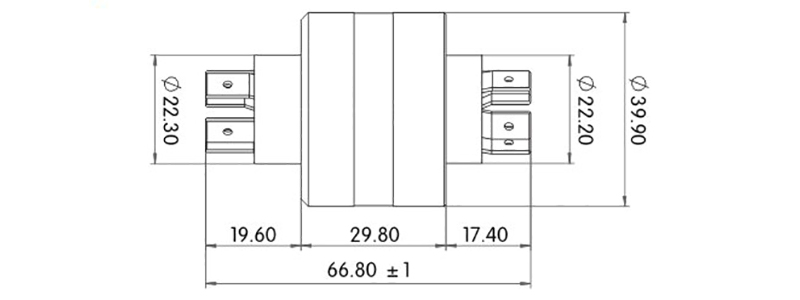

Dimensions (see Figure 1)
Figure 1
Multi-pole slip ring installation method (see Figure 2)
Figure 2
Corresponding accessories (see Figure 3)
Figure 3
| Parameter | Value |
| Model | A630-H |
| Number of connected circuits | 6 |
| Maximum current for long-term use | 4P-30/2S-5 |
| Instantaneous current | 50 |
| Rotating speed | 300 |
| Operating temperature | 60℃/-20℃ |
| Rotational torque | ≤400 |
| contact resistance | ＜1MΩ |
